Request a quote

Tell us about your spa install.

Tell us your spa's voltage and amperage (on the data plate inside the equipment bay), where you want it placed, and your timeline. Same-day or next-day quotes for standard installs.

Or call/text us directly Call or text · 513-813-7988

Why Benrishi

Your spa dealer doesn't do electrical. We do.

Sundance, Jacuzzi, Master Spas, Caldera, Hot Spring, Bullfrog — every premium spa manufacturer ships their tubs with a clear warning: "electrical installation must be performed by a licensed electrician to manufacturer specifications, or the warranty is void." That's where we come in.

01

Manufacturer-spec compliant

Every spa nameplate specifies amperage, voltage, and wire gauge. We follow it exactly — the correct GFCI breaker, properly sized copper conductors, the right wire configuration. The way Sundance, Jacuzzi, Master Spas, and every other manufacturer requires for warranty coverage to remain valid.

02

Properly placed disconnect

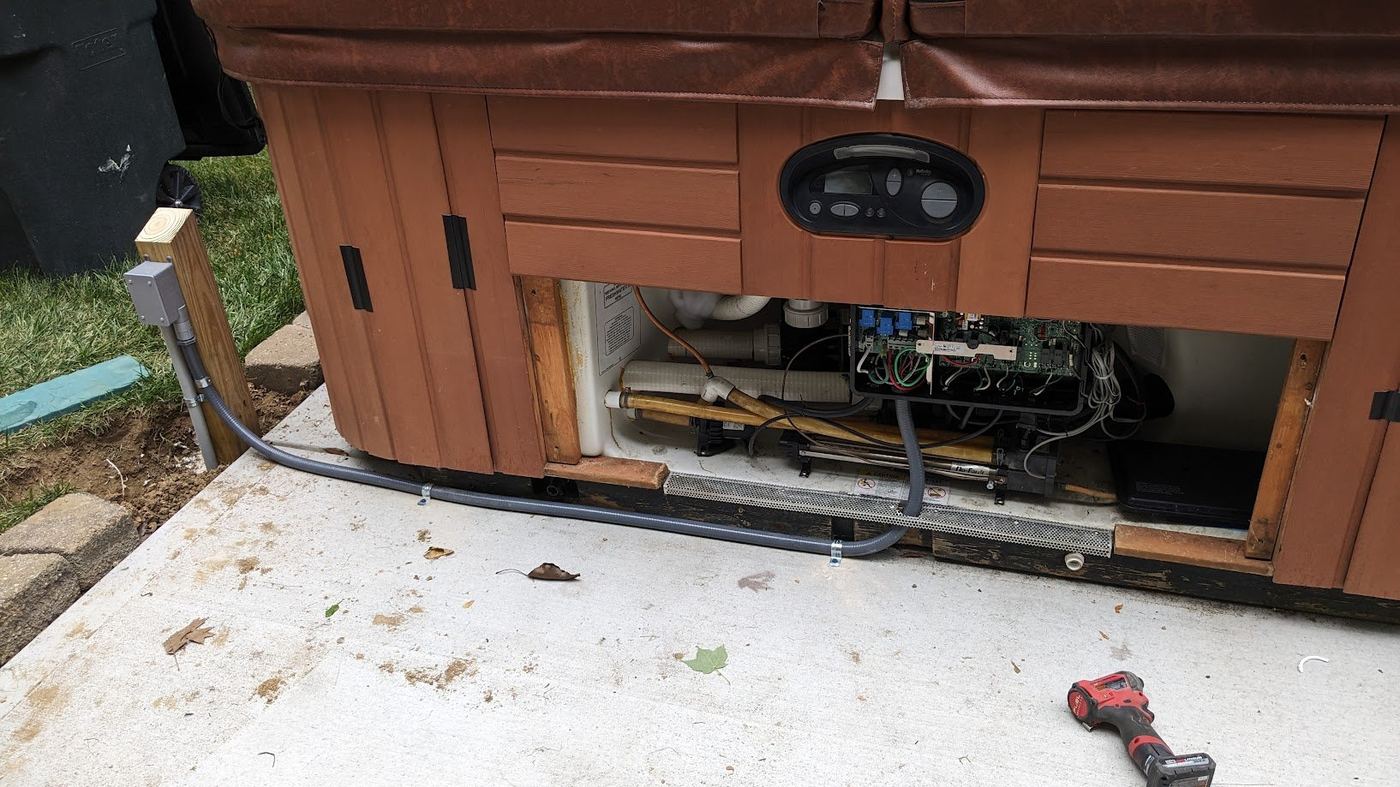

The disconnect goes outdoors, in line of sight of the spa, no closer than 5 feet from the inner rim of the basin. Line of sight allows the disconnect to be located up to 50 feet away when that placement makes sense. GFCI protection on the dedicated circuit. Proper bonding of metal parts within reach of the spa. The way it should be done.

03

Coordinated with your delivery

Spa delivery often takes 6–8 weeks from order. We schedule rough-in work — running conduit from your panel to the spa pad, installing the disconnect, prepping the circuit — before delivery, so when the spa arrives we can connect and energize in a single afternoon. For the cleanest install, have us run conduits before your slab is poured so we can conceal as much of the infrastructure from view as possible.

04

Done to the standard your warranty requires

Every spa manufacturer ships their tubs with a warning: electrical must be installed by a licensed contractor to manufacturer specifications. We document the install for your records — photographs, conductor sizing, torque values — so if a warranty claim ever arises, you have the documentation in hand.

Power Requirements

Two ways to wire a spa. We do both.

The right setup depends on what your spa's nameplate says — and what your home's electrical service can support. Check the data plate on your spa's equipment bay before you call, or send us a photo of it.

Plug-and-Play

120V / 15–20A

Smaller spas, fewer jets, slower heating

Dedicated 120V GFCI circuit
Weatherproof outdoor receptacle
In-line GFCI on the spa cord
No double-pole breaker needed
Heater and pump can't run simultaneously
Typical install: half-day

Most Common

Standard Spas

240V / 50–60A GFCI

Full-size hot tubs — Sundance, Jacuzzi, Master Spas, Caldera

Dedicated 240V circuit, hardwired
50A or 60A double-pole GFCI breaker
Properly sized copper, 4-wire system
Outdoor disconnect, line of sight, ≥5 ft from rim
Heater + pump + blower all run together
Typical install: 1 day

The non-negotiable: GFCI on every spa circuit

Whether 120V or 240V, GFCI protection is required on every hot tub and spa circuit. The GFCI senses ground faults in milliseconds and cuts power before someone in the water can be harmed. We never install a spa without one — no exceptions, regardless of what your previous electrician did.

Spas we've wired

Every premium brand.

Sundance Spas

Jacuzzi

Master Spas

Hot Spring

Caldera

Bullfrog

Marquis

Cal Spas

Vita Spa

Artesian

Dimension One

Strong Spas

The process

What a hot tub install actually looks like.

Whether you've already bought the spa or you're planning ahead, here's the timeline and the work we do.

01

Phone consult or photo of your spa's data plate

Text us a photo of the data plate on your spa (look on the equipment bay door). The amperage and voltage tell us what we need to install. We can usually quote over the phone for standard installs.

02

Site visit & quote

We come look at your panel, the path from panel to spa pad, and any concrete or landscape obstacles between. You get a written, flat quote with all materials itemized.

03

Work scheduled around your delivery

If your spa is being delivered soon, we coordinate timing — the electrical rough-in happens a few days before delivery so the spa pad is ready to energize the moment the tub is set. For new builds where the slab is not yet poured, we work with your builder to get conduit runs concealed before the pour.

04

Install day — typically 1 day

60A double-pole GFCI breaker into your panel. Conduit run from panel to spa pad — through walls, basements, attics, or trenched underground if needed. Weatherproof disconnect mounted within sight of the spa, 5–10 ft away. Terminations at panel, disconnect, and spa equipment bay. Test, label, walkthrough.

05

Walkthrough & first soak

We walk the install with you — where the disconnect is, how to power down for service, how to test the GFCI monthly. The spa fills, heats up, and is ready. That's it.

Common questions

What hot tub owners actually ask.

Can I wire it myself if I'm handy?

Practically and legally, you should not. Spa installations involve high-amperage circuits in wet outdoor environments. The bonding, GFCI, and disconnect requirements are not intuitive, and the typical homeowner doesn't have the gear to terminate the conductors properly. The bigger issue: most spa manufacturers will void your warranty if the install was not done by a licensed contractor with documentation. So even if a DIY install worked, you'd be on your own for any warranty claim.

My spa just says "240V / 50 amp." What does that mean for my house?

It means you need a dedicated 50-amp double-pole circuit in your main panel, protected by a GFCI breaker (not a standard breaker). The wire from panel to spa needs to be properly sized copper, in a 4-conductor configuration, run in conduit. The circuit terminates at a weatherproof disconnect outdoors, in line of sight of the spa, no closer than 5 feet from the rim of the basin. From the disconnect, the run continues to the spa's equipment bay. If your existing panel doesn't have two empty slots and capacity for a 50A breaker, we may need to upgrade your service or relocate other loads.

My spa is being delivered next week. Can you install in time?

Often yes. Call us as soon as you have a delivery date. Best case scenario, we do the rough-in work (conduit, disconnect, panel breaker) a day or two before delivery, then come back the day of delivery to make the final terminations and energize the circuit. Worst case, we install everything the day of or the day after delivery.

Does the GFCI breaker have to be on the spa? Can it just be a regular breaker?

No. GFCI protection is required on every spa and hot tub circuit. The GFCI can either be (a) a GFCI breaker in the main panel, or (b) a GFCI device in the disconnect near the spa. Most installs use the GFCI breaker in the main panel because it's easier to service. Whatever the installer says, the GFCI is mandatory — not optional, not "for code only," not "skippable if you're careful."

What about plug-and-play hot tubs? Those just plug into a regular outlet, right?

Yes, but with caveats. A 120V plug-and-play spa needs a dedicated 15–20A circuit (you can't share it with anything else), the outlet must be GFCI-protected, and the outlet must be on the exterior of the home in a weatherproof in-use cover. Many homeowners try to plug a spa into an existing outlet and trip the breaker constantly because something else is on the circuit. We install dedicated 120V circuits for plug-and-play spas too — about half the cost of a 240V install.

What about bonding? Does that apply to hot tubs?

Yes. Equipotential bonding is required for all permanently installed hot tubs. All metal parts within reach of the spa — handrails, decorative metalwork, metal deck railings, even adjacent metal furniture — must be bonded together with a properly sized copper conductor to eliminate voltage differences. Lots of installers skip this on outdoor spas. We don't. It's the same safety principle that prevents pool electrocution.

Can you install spa wiring through a finished basement?

Yes, and we do it often. The path from main panel to spa pad in a typical install goes through a finished basement ceiling, up to an exterior wall, and out through the rim joist or wall penetration. We pull through joist bays with minimum drywall impact, and we patch what we cut. If the cleanest route requires more drywall work than expected, we'll tell you up-front and quote a finishing carpenter if needed.

$Benrishi Electrical landing conductors at spa terminal block during a hot tub install$

The work, up close

Every conductor. Every termination.

A spa pulls high amperage continuously while running. Loose terminations under that load create resistance, resistance creates heat, and heat is how outdoor electrical fails — sometimes spectacularly. We land every conductor on its proper terminal, color-coded and torqued to manufacturer spec, every time.

4-wire Two hots, one neutral, one ground — landed properly
Torqued Every terminal to manufacturer specification
Labeled So whoever services the spa next understands the install
Tested GFCI tripped and reset before energizing the spa

Your spa is delivered Friday. Here's how we get it powered up.
